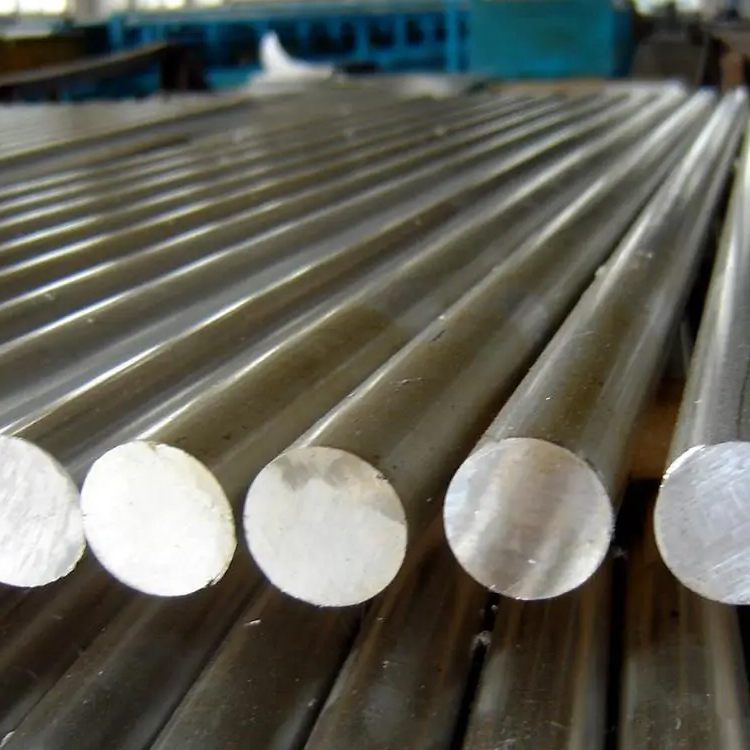

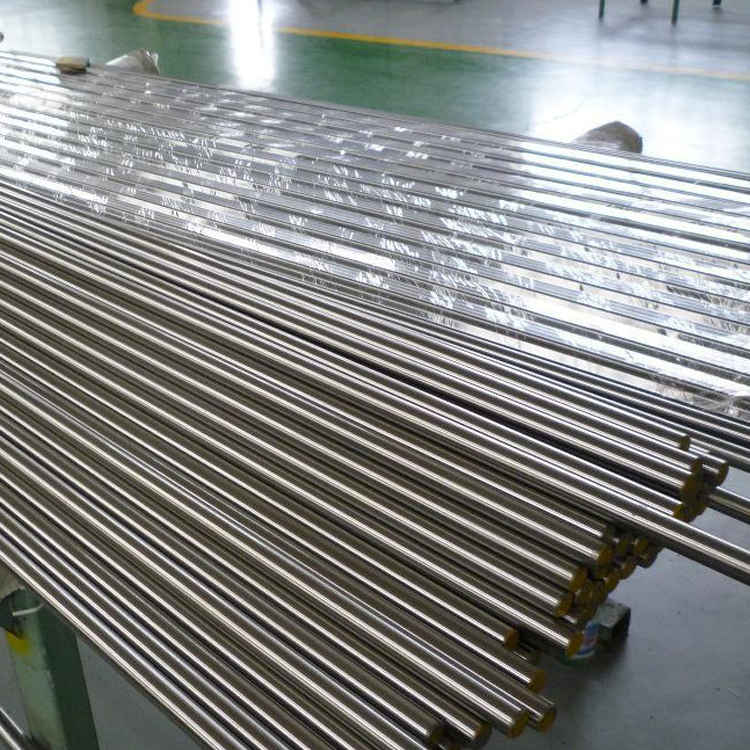

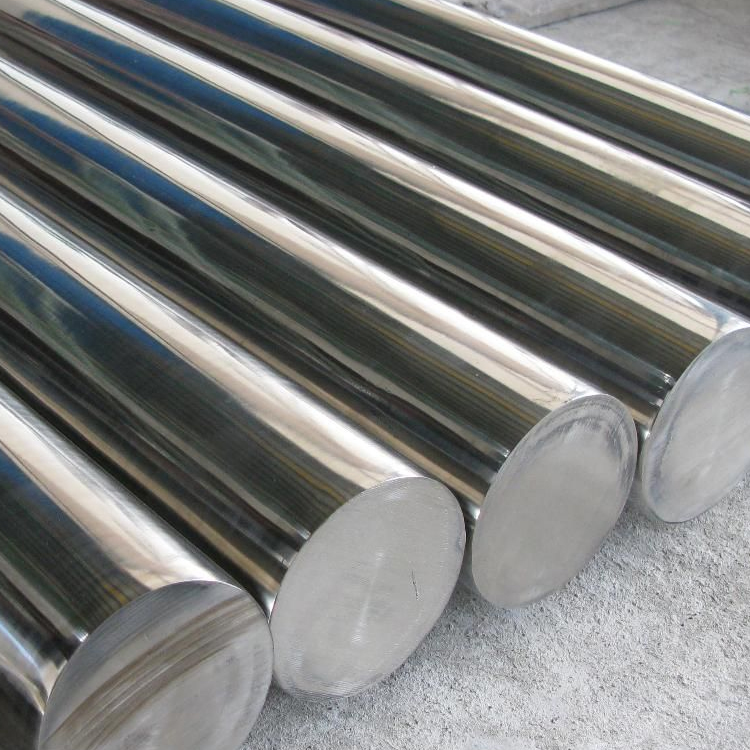

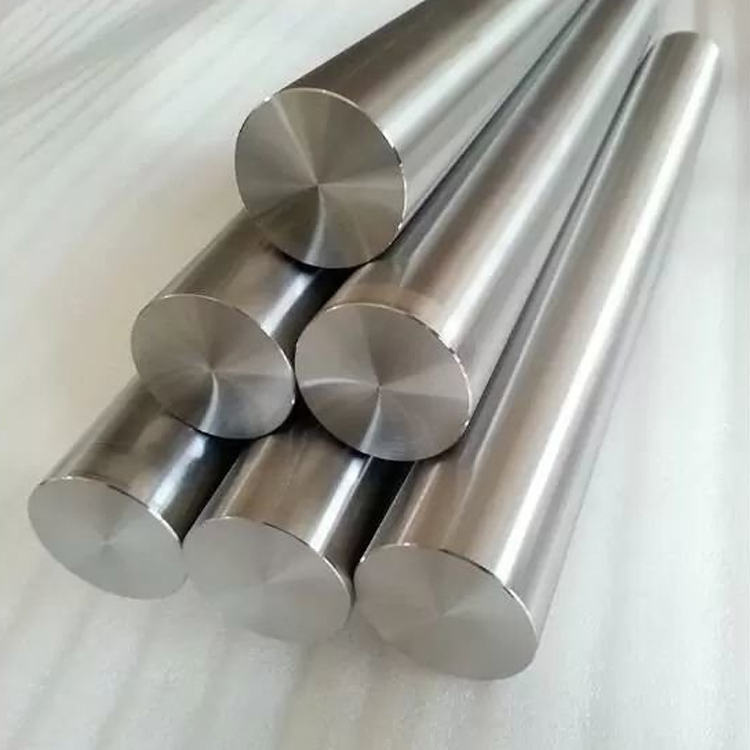

321 Stainless Steel Bar
Stainless Steel Bar is one type of a product made in the stainless steel materials. There are different grades of stainless steels used in various industries. Stainless steel bars are used for their strength and corrosion resistance properties. All stainless steels contain chromium. The composition can vary and the chromium content varies as well. The more the chromium content, the high the corrosion resistance is.

Payment Term：T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation：By sea or Land transportation

CONTACT US

PRODUCT DETAILS


321 Stainless Steel Bar Rod manufacture



Grades 321 and 347 are the basic austenitic 18/8 steel (Grade 304) stabilized by Titanium (321) or Niobium (347) additions. These grades are used because they are not sensitive to intergranular corrosion after heating within the carbide precipitation range of 425-850 °C. Grade 321 is the grade of choice for applications in the temperature range of up to about 900 °C, combining high strength, resistance to scaling and phase stability with resistance to subsequent aqueous corrosion.



321 Stainless Steel Bar Rod Price in China ,Manufacturer of 321 Stainless Steel Bar Rod



A limitation with 321 is that titanium does not transfer well across a high-temperature arc, so it is not recommended as a welding consumable. In this case grade 347 is preferred - the niobium performs the same carbide stabilization task but can be transferred across a welding arc. Grade 347 is, therefore, the standard consumable for welding 321. Grade 347 is only occasionally used as parent plate material.

Grade 321H is a modification of 321 with higher carbon content, to provide improved high-temperature strength.



Equivalent Material of 321 Stainless Steel Bar Rod



GradeUNS No.Old BritishEuronormChina GBJapanese JIS
BSENNo.Name
321S32100321S3158B1.4541X6CrNiTi18-10 X10CrNiTi189SUS 321



Standard Specification Of ASTM A240 Type 321 Stainless Steel Bar Rod



SpecificationsASTM A276
Diameter3、5、6、7、8、9、10、12、15、18、20、25、30、35、40、50、100、200etc
Length2000mm, 2500mm, 3000mm,3500mm, 4000mm 5000mm 6000mm 10000mm 12000mm etc
SurfaceBlack 、 bright、 pickling 、etc
FinishHot rolled plate (HR), Cold rolled sheet (CR),
FormRod, Round, Channel Bar, Rings, Round Rod, Triangle, Hollow, Rectangle, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.



321 Stainless Steel Bar Rod  Composition and Mechanical Characteristics



GradeCMnSiPSCrMoNiN
321Min.
Max.		/
0.08		/
2.00		/
0.75		/
0.045		/
0.030		17.00
19.50		/9.00
12.00		0.1



GradeTensile Strength
(MPa) 		Yield Strength
0.2% Proof (MPa) 		Elongation
(% in 50mm)		Hardness
Rockwell B
(HR B)		Brinell
(HB)
3215152054095217



Common Types Of 321 Stainless Steel Bar Rod

Dimensions Standard,weight chart and size schedules of 321 Stainless Steel Bar Rod



SS 321 rod DiameterWeight chart per meterSS 321 rod DiameterWeight chart per meter
3mm0.06 Kg1/8''0.06 kg
4mm0.10 Kg3/16''0.14 kg
5mm0.16 Kg1/4''0.25 kg
6mm0.22 Kg5/16''0.39 kg
7mm0.30 Kg3/8''0.56 kg
8mm0.40 Kg7/16''0.77 kg
10mm0.62 Kg1/2''1.00 kg
12mm0.89 Kg9/16''1.22 kg
14mm1.22 Kg5/8''1.56 kg
15mm1.40 Kg11/16''1.89 kg
16mm1.59 Kg3/4''2.25 kg
18mm2.01 Kg7/8''3.07 kg
20mm2.48 Kg1''4.03 kg
22mm3.00 Kg

24mm3.57 Kg

25mm3.88 Kg
