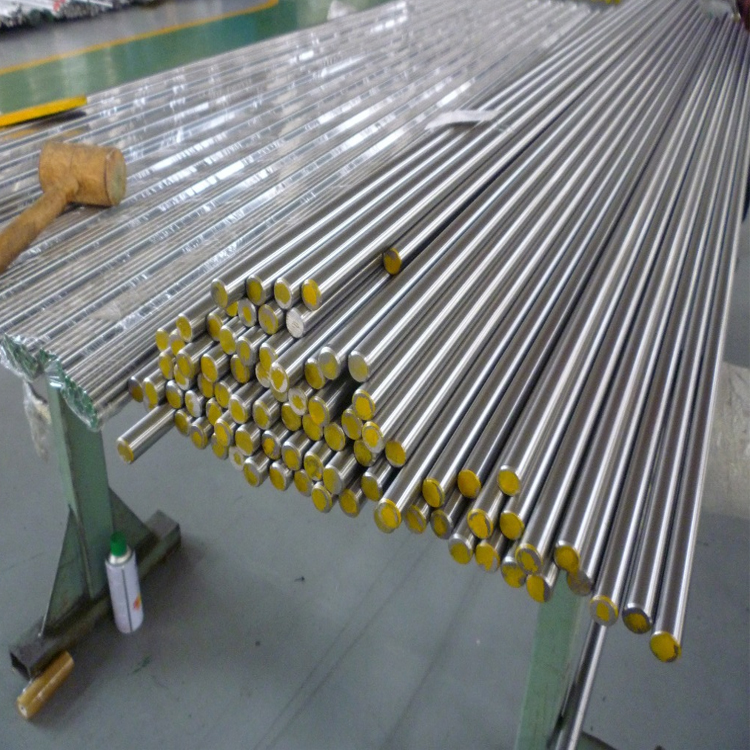

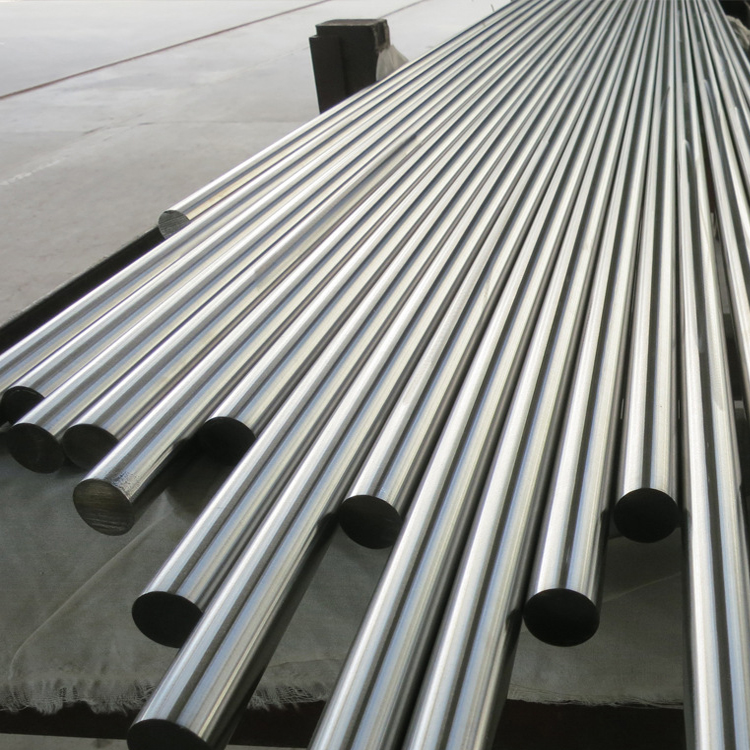

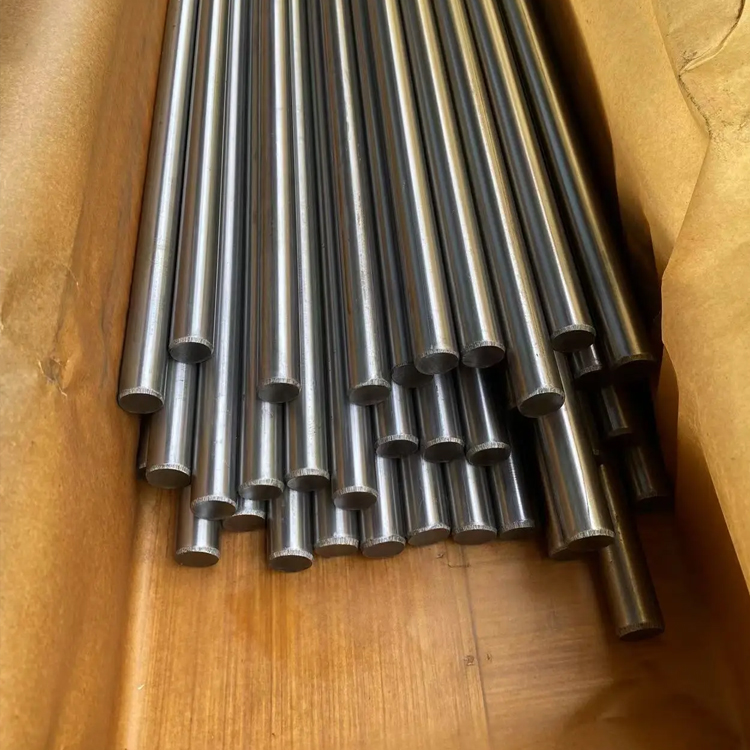

301 Stainless Steel Bar
Stainless Steel Bar is one type of a product made in the stainless steel materials. There are different grades of stainless steels used in various industries. Stainless steel bars are used for their strength and corrosion resistance properties. All stainless steels contain chromium. The composition can vary and the chromium content varies as well. The more the chromium content, the high the corrosion resistance is.

Payment Term：T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation：By sea or Land transportation

CONTACT US

PRODUCT DETAILS


301 Stainless Steel Bar Rod manufacturer



The 301 stainless steel belt is a kind of metastable austenitic stainless steel with complete austenitic structure under the condition of sufficient solution.In stainless steel, 301 is the most easy to strengthen the cold deformation of steel, through the cold deformation processing can make the strength of steel, hardness, and retain enough plastic, toughness, and this steel has good rust resistance under atmospheric conditions.



301 Stainless Steel Bar Rod Price in China ,Manufacturer of 301 Stainless Steel Bar Rod



301 has poor corrosion resistance in reducing media and poor corrosion resistance in chemical media such as acid, alkali and salt, so it is not recommended for harsh corrosion environments.The 301 is mainly used in cold working condition for equipment parts that bear high loads and want to reduce the weight of the equipment and do not rust.In addition, this steel is easy to produce work hardening when impacted by external forces and can absorb more impact energy, which will provide a more reliable safety guarantee for equipment and personnel.

The 301 is prone to work hardening during deformation and is used in places requiring higher strength



Equivalent Material of 301 Stainless Steel Bar Rod



GradeUNS No.Old BritishEuronormChina GBJapanese JIS
BSENNo.Name
301S30100310S211.4462 -X10CrNi18-812Cr17Ni7SUS 301



Standard Specification Of ASTM A240 Type 301 Stainless Steel Bar Rod



SpecificationsASTM A276
Diameter3、5、6、7、8、9、10、12、15、18、20、25、30、35、40、50、100、200etc
Length2000mm, 2500mm, 3000mm,3500mm, 4000mm 5000mm 6000mm 10000mm 12000mm etc
SurfaceBlack 、 bright、 pickling 、etc
FinishHot rolled plate (HR), Cold rolled sheet (CR),
FormRod, Round, Channel Bar, Rings, Round Rod, Triangle, Hollow, Rectangle, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.



301 Stainless Steel Bar Rod Composition and Mechanical Characteristics



GradeCMnSiPSCrMoNiN
301Min.
Max.		/
0.15		/
2.00		/
1.0		/
0.045		/
0.030		16.00
18.00		/6.00
8.00		/
0.10



GradeTensile Strength
(MPa) 		Yield Strength
0.2% Proof (MPa) 		Elongation
(% in 50mm)		Hardness
Rockwell B
(HR B)		Brinell
(HB)
30175827660 -180



Common Types Of 301 Stainless Steel Bar Rod

Dimensions Standard,weight chart and size schedules of 301 Stainless Steel Bar Rod



SS 301 rod DiameterWeight chart per meterSS 301 rod DiameterWeight chart per meter
3mm0.06 Kg1/8''0.06 kg
4mm0.10 Kg3/16''0.14 kg
5mm0.16 Kg1/4''0.25 kg
6mm0.22 Kg5/16''0.39 kg
7mm0.30 Kg3/8''0.56 kg
8mm0.40 Kg7/16''0.77 kg
10mm0.62 Kg1/2''1.00 kg
12mm0.89 Kg9/16''1.22 kg
14mm1.22 Kg5/8''1.56 kg
15mm1.40 Kg11/16''1.89 kg
16mm1.59 Kg3/4''2.25 kg
18mm2.01 Kg7/8''3.07 kg
20mm2.48 Kg1''4.03 kg
22mm3.00 Kg

24mm3.57 Kg

25mm3.88 Kg
