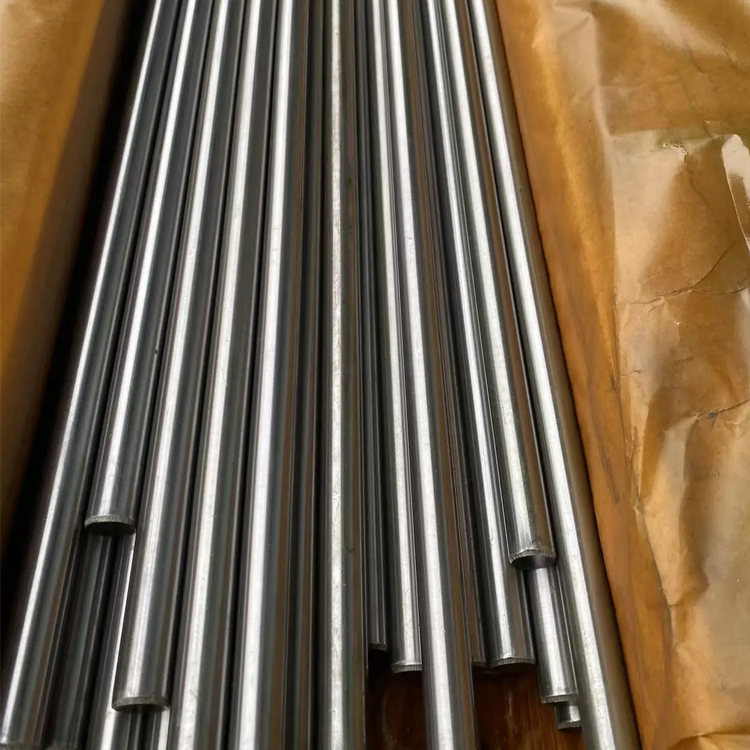

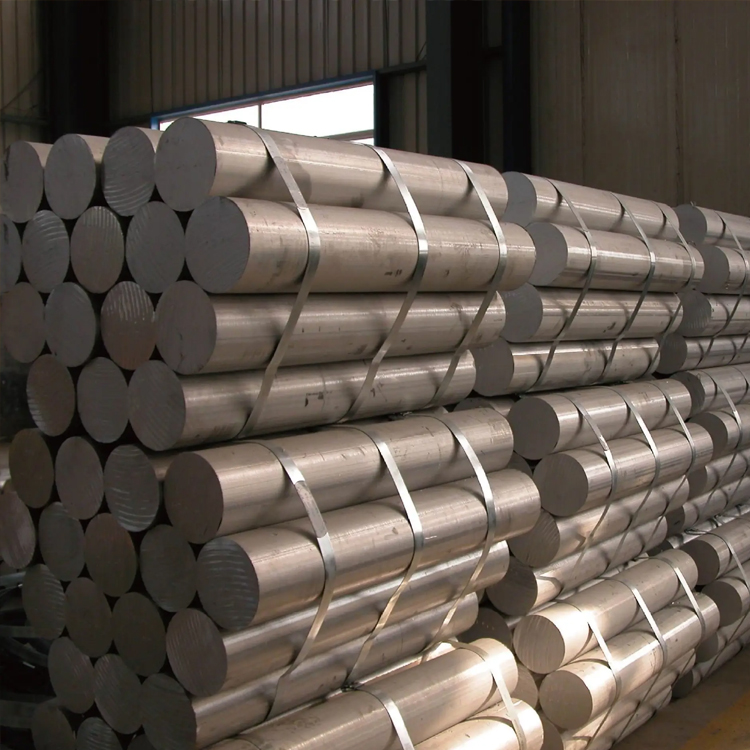

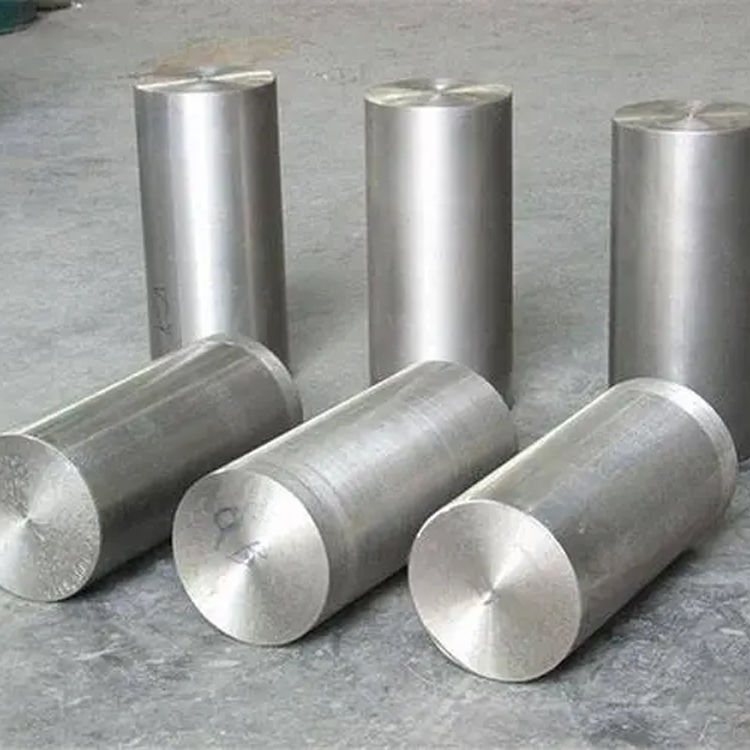

2507 Stainless Steel Bar

Stainless Steel Bar is one type of a product made in the stainless steel materials. There are different grades of stainless steels used in various industries. Stainless steel bars are used for their strength and corrosion resistance properties. All stainless steels contain chromium. The composition can vary and the chromium content varies as well. The more the chromium content, the high the corrosion resistance is.

Payment Term：T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation：By sea or Land transportation

PRODUCT DETAILS

2507 Stainless Steel Bar Rod manufacturer

Stainless steel Super Duplex 2507 is designed to handle highly corrosive conditions and situations were high strength is required. High molybdenum, chromium and nitrogen content in Super Duplex 2507 help the material withstand pitting and crevice corrosion. The material is also resistant to chloride stress corrosion cracking, to erosion corrosion, to corrosion fatigue, to general corrosion in acids. This alloy has good weldability and very high mechanical strength.

2507 Stainless Steel Bar Rod Price in China ,Manufacturer of 2507 Stainless Steel Bar Rod

2507 is a ferritic-austenitic (dual-phase) stainless steel that combines the most beneficial properties of many ferritic and austenitic steels. Due to its high chromium and molybdenum content, the steel has excellent resistance to pitting, crevices and uniform corrosion.Dual-phase microstructure ensures that the steel has high stress corrosion cracking resistance and high mechanical strength

The following sections will discuss in detail about stainless steel grade Super Duplex 2507.

Equivalent Material of 2507 Stainless Steel Bar Rod

Grade	UNS No.	Old British		Euronorm		China GB	Japanese JIS
		BS	EN	No.	Name
2507	S32750	-	-	1.441	25Cr-7Ni-4Mo-0.27N	022Cr25Ni7Mo4N	SUS 2507

Standard Specification Of ASTM A240 Type 2507 Stainless Steel Bar Rod

Specifications	ASTM A276
Diameter	3、5、6、7、8、9、10、12、15、18、20、25、30、35、40、50、100、200etc
Length	2000mm, 2500mm, 3000mm,3500mm, 4000mm 5000mm 6000mm 10000mm 12000mm etc
Surface	Black 、 bright、 pickling 、etc
Finish	Hot rolled plate (HR), Cold rolled sheet (CR),
Form	Rod, Round, Channel Bar, Rings, Round Rod, Triangle, Hollow, Rectangle, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.

2507 Stainless Steel Bar Rod Composition and Mechanical Characteristics

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
2507	Min. Max.	/ 0.03	/ 1.20	/ 0.80	/ 0.035	/ 0.020	24.00 26.00	3.00 5.00	6.00 8.00	0.24 0.32

Grade	Tensile Strength (MPa)	Yield Strength 0.2% Proof (MPa)	Elongation (% in 50mm)	Hardness
				Rockwell B (HR B)	Brinell (HB)
2507	795	550	15	29	-

Dimensions Standard,weight chart and size schedules of 2507 Stainless Steel Bar Rod

SS 2507 rod Diameter	Weight chart per meter	SS 2507 rod Diameter	Weight chart per meter
3mm	0.06 Kg	1/8''	0.06 kg
4mm	0.10 Kg	3/16''	0.14 kg
5mm	0.16 Kg	1/4''	0.25 kg
6mm	0.22 Kg	5/16''	0.39 kg
7mm	0.30 Kg	3/8''	0.56 kg
8mm	0.40 Kg	7/16''	0.77 kg
10mm	0.62 Kg	1/2''	1.00 kg
12mm	0.89 Kg	9/16''	1.22 kg
14mm	1.22 Kg	5/8''	1.56 kg
15mm	1.40 Kg	11/16''	1.89 kg
16mm	1.59 Kg	3/4''	2.25 kg
18mm	2.01 Kg	7/8''	3.07 kg
20mm	2.48 Kg	1''	4.03 kg
22mm	3.00 Kg
24mm	3.57 Kg
25mm	3.88 Kg
