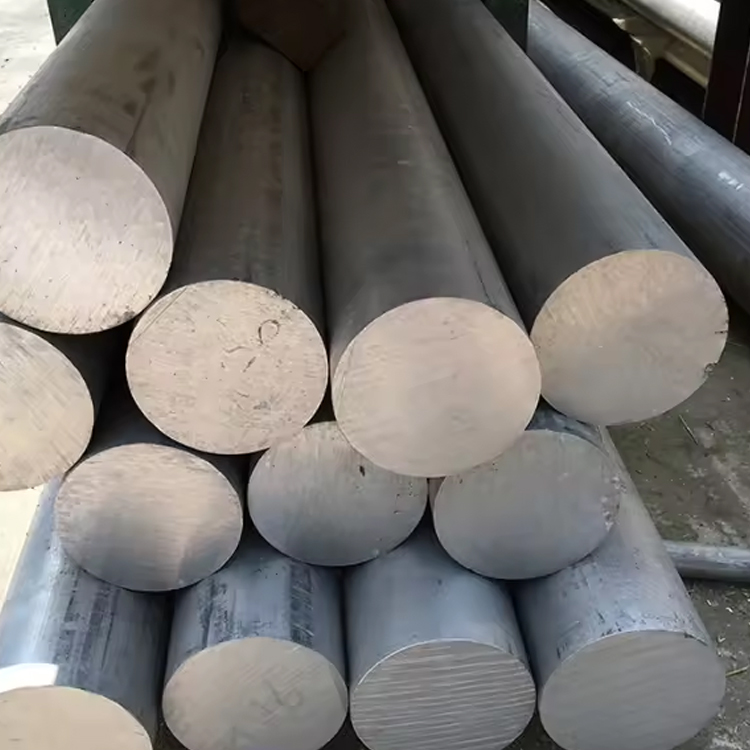

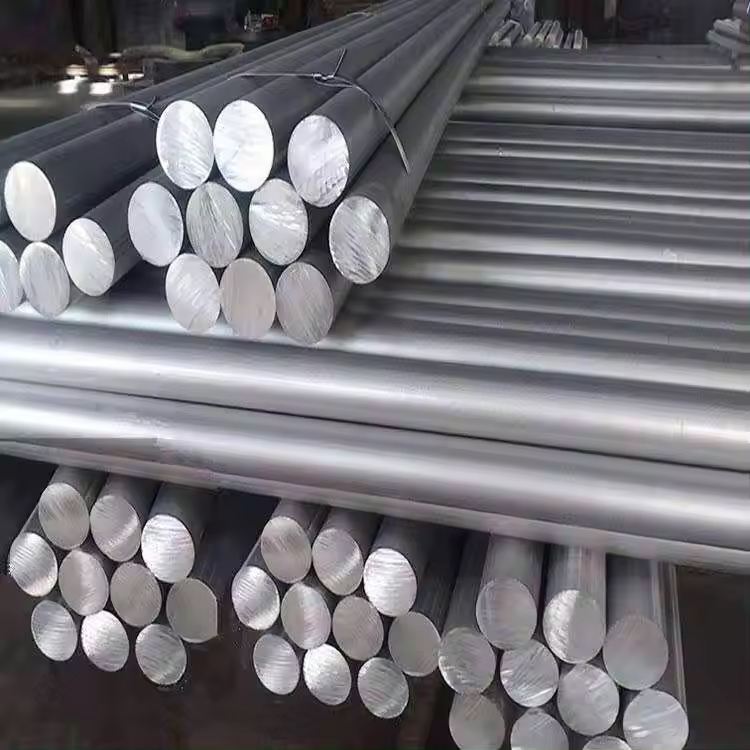

201 Stainless Steel Bar
Stainless Steel Bar is one type of a product made in the stainless steel materials. There are different grades of stainless steels used in various industries. Stainless steel bars are used for their strength and corrosion resistance properties. All stainless steels contain chromium. The composition can vary and the chromium content varies as well. The more the chromium content, the high the corrosion resistance is.

Payment Term:T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation:By sea or Land transportation

CONTACT US

PRODUCT DETAILS

201 Stainless Steel Bar Rod manufacturer



Type 201 stainless steel is an alloy that contains half the nickel and more manganese and nitrogen than other popular steels. While it is less expensive than some other alloys (because of its low nickel content), it is not as easy to work or form. Type 201 is an austenitic metal because it is non-magnetic stainless steel that contains high levels of chromium and nickel and low levels of carbon.



201 Stainless Steel Bar Rod Price in China ,Manufacturer of 201 Stainless Steel Bar Rod



Type 201 stainless steel is a mid-range product with a variety of useful qualities. While it is ideal for certain uses, it is not a good choice for structures that may be prone to corrosive forces such as saltwater.
Type 201 is used to produce a range of household appliances, including sinks, cooking utensils, washing machines, windows, and doors. It is also used in automotive trim, decorative architecture, railway cars, trailers, and clamps. It is not recommended for structural outdoor applications because of its susceptibility to pitting and crevice corrosion.

Grade 201 stainless steel has good formability, corrosion resistance, and fabricability. It is similar to that of 301 stainless steel. The following datasheet gives more details about grade 201 stainless steel.



Equivalent Material of 201 Stainless Steel Bar Rod



GradeUNS No.Old BritishEuronormChina GBJapanese JIS
BSENNo.Name
201 - - 1.4372 - -1Cr17Mn6Ni5NSUS201



Standard Specification Of ASTM A240 Type 201 Stainless Steel Bar Rod



SpecificationsASTM A276
Diameter3、5、6、7、8、9、10、12、15、18、20、25、30、35、40、50、100、200etc
Length2000mm, 2500mm, 3000mm,3500mm, 4000mm 5000mm 6000mm 10000mm 12000mm etc
SurfaceBlack 、 bright、 pickling 、etc
FinishHot rolled plate (HR), Cold rolled sheet (CR),
FormRod, Round, Channel Bar, Rings, Round Rod, Triangle, Hollow, Rectangle, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.



201 Stainless Steel Bar Rod  Composition and Mechanical Characteristics



GradeCMnSiPSCrMoNiN
201Min.
Max.
/
0.15
5.50
7.50
/
1.0
/
0.045
/
0.030
16.00
18.00
/3.50
5.50
/



GradeTensile Strength
(MPa)
Yield Strength
0.2% Proof (MPa)
Elongation
(% in 50mm)
Hardness
Rockwell B
(HR B)
Brinell
(HB)
3166852915685-



Common Types Of 201 Stainless Steel Bar Rod



Dimensions Standard,weight chart and size schedules of 201 Stainless Steel Bar Rod



SS 201 rod DiameterWeight chart per meterSS 201 rod DiameterWeight chart per meter
3mm0.06 Kg1/8''0.06 kg
4mm0.10 Kg3/16''0.14 kg
5mm0.16 Kg1/4''0.25 kg
6mm0.22 Kg5/16''0.39 kg
7mm0.30 Kg3/8''0.56 kg
8mm0.40 Kg7/16''0.77 kg
10mm0.62 Kg1/2''1.00 kg
12mm0.89 Kg9/16''1.22 kg
14mm1.22 Kg5/8''1.56 kg
15mm1.40 Kg11/16''1.89 kg
16mm1.59 Kg3/4''2.25 kg
18mm2.01 Kg7/8''3.07 kg
20mm2.48 Kg1''4.03 kg
22mm3.00 Kg

24mm3.57 Kg

25mm3.88 Kg
