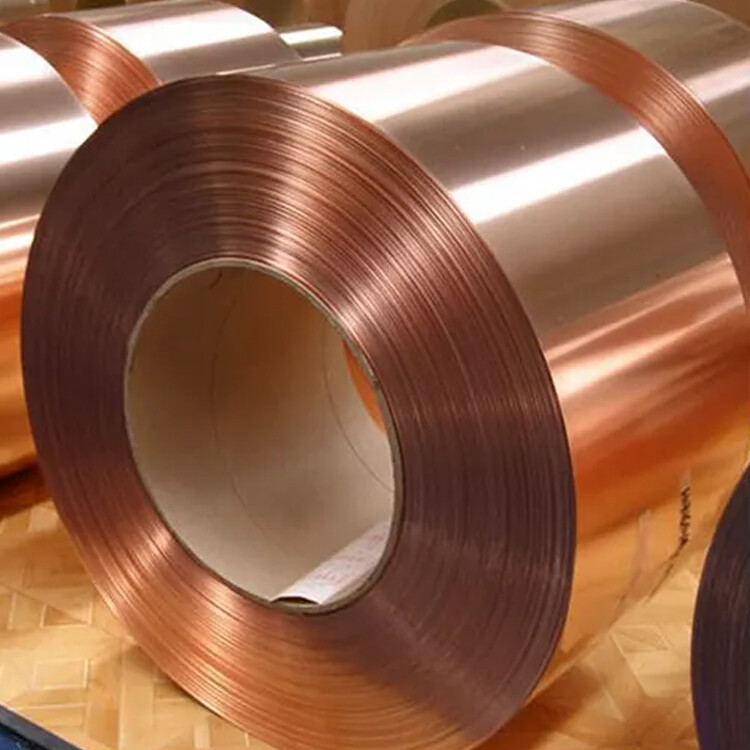

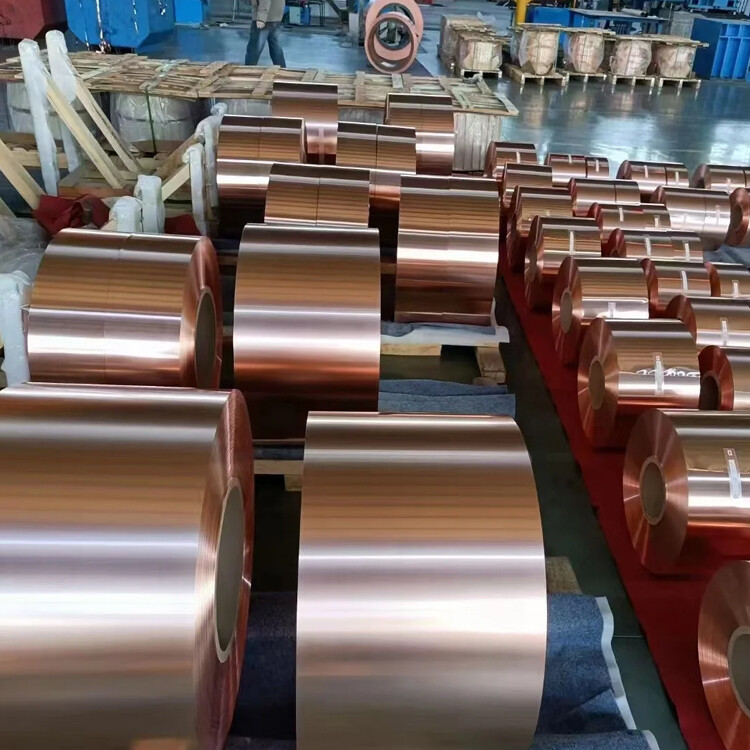

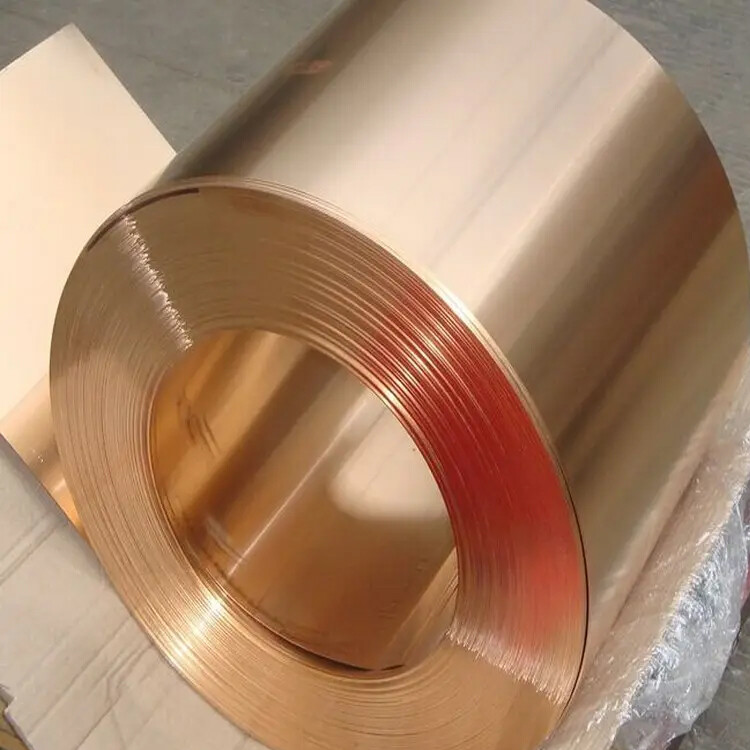

T2/C11000/SE-Cu Copper Coil

Grade:Copper Coil
Cu (Min):99.90%
Alloy Or Not:Non-Alloy
Processing Service:Cutting
Surface:Smooth, clean surface with uniform color

Payment Term:T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation:By sea or Land transportation

CONTACT US

PRODUCT DETAILS


ItemCopper Coil
StandardJIS H3100-2006 ,ASTM B152M-06,GB/T 2040-2008,ROCT 495-92,EN 1652-98,ASTM B171M-04,
Material

C12300,C1020P,C10100,C10400,C10700,C10200,T2,C1100P,C10500,M1,Cu-ETP,TP1,C1201P,C11000

,Cu-DLP,TP2,C1220P,C1221P,C1200,C12200,C14200,C23000P,H62,C2801P,C36500

Thickness0.01mm~20mm
Width1mm~2500mm
LengthRandom size and customize or as required
Surfacemill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
PackageStandard export seaworthy or as customers' requirements
ApplicationCopper coil can be made to do all sorts of deep drawing and bending stress components,
such as manufacturing pins,rivets,gasket,nuts,conduits,the barometer spring,screen,
radiator parts, etc
Export to

Ireland,Singapore,Indonesia,Ukraine,Saudi,Arabia,Spain,Canada,USA,Brazil,Thailand,Iraq,Russia,Holland,Turkey

,Kuwait,Korea,Argentina,India,Egypt,Oman,Malaysia,Peru,

Vietnam,Mexico,etc


Product Description


Standard Cerficte
GB/T 5231-2001,GB/T 18813-2002CQC, RoHS, ISO9001,SGS
GradeCu+AgBiSbAsFePbS
c110099.90%0.001%0.002%0.002%0.005%0.005%0.005%
TemperThickness
(mm)
Width
(mm)
Cu(min)Electrical conductivity
(20℃)(IACS)
Resistivity
{Ω(mm)^2/m}
Side camber
(mm/m)
Edge burr
(mm)
Vickers hardness
Soft0.2-3.0100-120099.90%≥98.20%≤0.017540≤2≤0.0245-65


Product Overview


Copper, the surface of the formation of oxide film is purple, also known as red copper, has good conductivity and thermal conductivity, excellent plasticity, easy to hot pressure and cold pressure processing, a large number of used in the manufacture of wire, cable, brush, electric discharge corrosion of copper and other special requirements of good electrical conductivity products.





Equipment


In the process of processing need to pay attention to the selection of appropriate processing conditions. The copper material should be cold rolled, annealed and passivated to eliminate the internal stress and improve the plasticity and toughness of the material. Red copper processing is prone to deformation, an effective method is to use flexible support, give enough support and protection during processing, to prevent copper material deformation. When processing red copper, it is necessary to control the temperature and speed during processing to avoid deformation caused by overheating or undercooling. Red copper can be processed by cold forging, wet forging, hot forging and other processes. Choose the right processing technology to obtain better processing results.




Packaging Shipping


Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. Generally speaking, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.
